Cryostat with Object Head Cooling

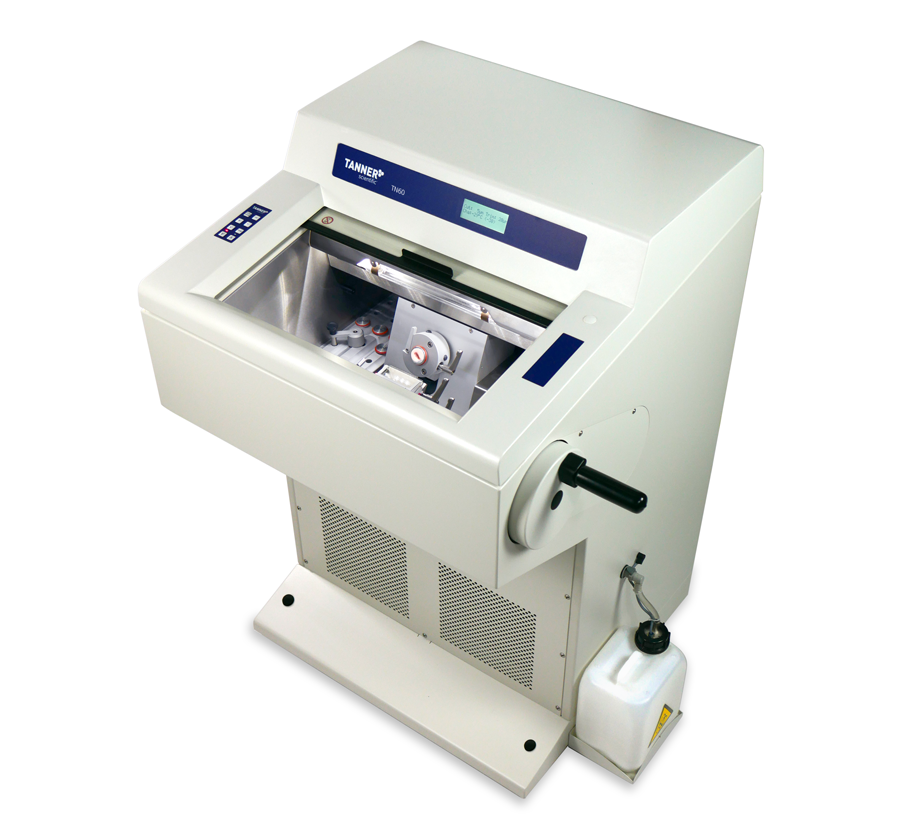

TN60 Cryostat with Object Head Cooling
The NEW German-made Tanner Scientific® TN60 Cryostat features a smooth microtome for easy, intuitive operation. For extra convenience, the system includes a spacious stainless steel chamber, 24 easily accessible freezing positions and a well illuminated cooling chamber that can be effectively cooled down to -35°C. For additional user safety, the system is equipped with an efficient UV-C disinfection system.
Item # TNR TN60
- Dimensions (WxDxH): 26.77" x 29.92" x 43.70"
- Weight (w/o accessories): 280 lbs
- Electrical Parameters: 115V; 50/60 Hz
CRYOCHAMBER SPECIFICATIONS:
- Material: Stainless Steel
- Illumination: LED, White
- Temperature Range: 0°C to -35°C
- Sample Preparation Positions: 24 Positions, Temperature Range: -40°C to -45°C
MICROTOME SPECIFICATIONS:
- Section Thickness Range: 0.5 µm to 100 µm
- Section Thickness Selection:
0.5 to 2 µm in 0.5 µm Steps
2 to 20 µm in 1.0 µm Steps
20 to 50 µm in 2.0 µm Steps
50 to 100 µm in 5.0 µm Steps - Trimming Thickness Setting Range: 0.5 to 750 µm
- Horizontal Specimen Feed: 28 mm
- Vertical Stroke: 58 mm
- Coarse Feed: Motorized (600 µm/s + 3.000 µm/s)
- Specimen Retraction: 0 to 200 µm, Free Programmable
- Horizontal Orientation: 8°
- Vertical Orientation: 8°
- Z-Axis Orientation: 360°
*2 Year Warranty: 1st year = parts + labor, 2nd year = parts.
